Pierre Rondel
01/04/2009

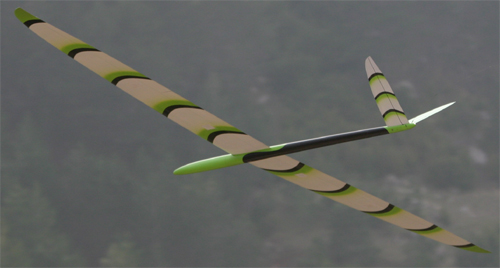

Here are more information and also plenty of pictures about the new F3F weapon of Jean-Claude Tourniaire & Mathieu Mervelet, now manufactured by CCM (Cevennes Concept Modélisme):

2 wingspans are available:

F3B

F3F

Construction:

Wings : 2 layouts are available:

  1. Standard layout: The wing skin is made of carbon 160 gr/m² / herex / Fiber glass. This version is recommended for F3F when the landing is sometimes difficult and hard for the planes.
  2. Competition layout: The wing skin is made of carbon 80 gr/m² / herex / carbon 80 gr/m²

The fuselage is common to both version and is in 3 parts :

      1. The boom is in full carbon (weigth about 150g).
      2. The « under nose come » is 2.4Ghz friendly (135grs). It includes the ballast tube.
      3. The nose cone in also fiber glass

Tailplane is full carbone and in one piece including the joiner. Control horns are in place. They use a very inovative fixing system with a joiner going from square to round section, and secured with a screew at the end.

Price list:



FYI, Weight of my F3F version (standard layout) is the following:

For any order, please contact Rémi Girard (CCM) at the following email address: ccm-rc(at)cegetel.net or remi.girard(at)cegetel.net (please replace the (at) with @ to obtain a valid email address).



Some video taken during the Eurotour F3F at La muela and St Ferriol/Laurac:


Non valid flight from Pierre Rondel at La Muela because of a problem on the timing system (Copyright © Cédric Granseigne).


The reflight from Pierre Rondel at La Muela (Copyright © Cédric Granseigne).


Remi Girard flying his Martinet in competition right after the maiden flight few minutes before (Copyright © Cédric Granseigne).





martinet_0001 martinet_0002 martinet_0003
martinet_0004 martinet_0005 martinet_0006
martinet_0007 martinet_0008 martinet_0009
martinet_0010 martinet_0011 martinet_0012
martinet_0013 martinet_0014 martinet_0015
martinet_0016 martinet_0017 martinet_0018
martinet_0019 martinet_0020 martinet_0021
martinet_0022 martinet_0023 martinet_0024
martinet_0025 martinet_0026 martinet_0027
martinet_0028 martinet_0029 martinet_0030
martinet_0031 martinet_0032 martinet_0033
martinet_0034 martinet_0035 martinet_0036
martinet_0037 martinet_0038 martinet_0039
martinet_0040 martinet_0041 martinet_0042
martinet_0043 martinet_0044 martinet_0045
martinet_0046 martinet_0047 martinet_0048
martinet_0049 martinet_0050 martinet_0051
martinet_0052 martinet_0053 martinet_0054
martinet_0055 martinet_0056 martinet_0057
martinet_0058 martinet_0059 martinet_0060
martinet_0061 martinet_0062 martinet_0063
martinet_0064 martinet_0065 martinet_0066
martinet_0067 martinet_0068 martinet_0069
martinet_0070 martinet_0071 martinet_0072
martinet_0073 martinet_0074 martinet_0075
martinet_0076 martinet_0077
